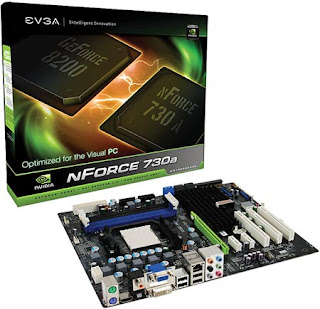

EVGA nForce 730a - budget motherboard with integrated GPU


An online directory of EVGA enriched system board on a set of system logic NVIDIA nForce 730a (GeForce 8200). The fee covers the processors AMD, equipped with AM2 socket and AM2 +. The existence of the integrated GeForce 8200 graphics processor and expansion slots PCI-Express 2.0 x16 provide sufficient flexibility in building graphics subsystem. Clock frequency integrated GPU core is 500 MHz, 16 stream processors pulses at a frequency of 1200 megahertz. Connect your monitor plugs provide a D-Sub, DVI and HDMI.

Technical data EVGA nForce 730a:
  • Chipset - NVIDIA nForce 730a;
  • CPU - AMD Phenom, Athlon 64 X2, Athlon 64, Sempron (socket AM2 and AM2, HyperTransport bus 2600 MHz);
  • Memory - 4 x 240-pin connector DIMM, double-circuit DDR2, up to 8 GB of DDR2 533/667/800 MHz;
  • Expansion slots - 1 x PCIe x16, 2 x PCIe x1, 3 x PCI;
  • Storage subsystems - 1 x UDMA133; 6 x SATA with support for RAID 0, 1, 0 1, 5 and JBOD; the drive controller;
  • Sound subsystem - 7.1, Azalia (HD Audio);
  • A network adapter - Ethernet 10/100/1000 Mbps;
  • I / O ports - 2 x PS2, one serial port, 12 x USB2.0;
  • Recommended power BP - 350 W;
  • Platform - ATX, 304,8 x 243.6 mm.


Recommended by retail price is $ 95.

Source: EVGA
